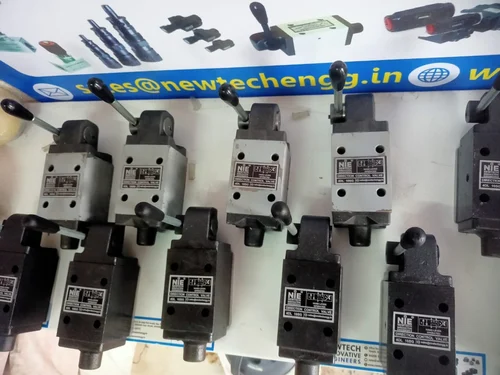

Lever Operated Directional Control Valve

Completely encapsulated control mechanism for protection against dirt. Five chamber design. Flexibility in rotating the operating mechanism by 90° x 4. Wide variety of spools available in subplate model only.   Designed for single acting cylinders which are supposed to hold pressure. Ensures smooth decompression prior to return of the cylinder ram. Large return oil passage to reduce pressure drops, allowing rams to return under low external forces. Valves can be connected in series for independent multiple single acting cylinder operations.  Designed for single acting cylinders which are supposed to hold pressure.
Specially suitable for rubber moulding presses. Ensure smooth decompression prior to return of the cylinder ram. Available as standard & Quick Exhaust. Large return oil passages allows rams to return under low external forces. Valves with quick exhaust feature have 2.34 times larger return passages. Provided with manual opening in case of power failures.
